hAP ac³ LTE6 kit

The new standard in functionality and style for wireless home router with LTE for internet or fail-over !

IMPORTANT NOTICE: This product has been permanently removed from production - once current and expected arriving inventory is depleted, no further units will be available.

For alternative and similar products, pleas refer to the Related Products section below.

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

hAP ac³ LTE6 kit features our newest CAT6 LTE modem. It enables carrier aggregation, allowing you to use the LTE connection with speed up to 300 Mbps. It works by using multiple LTE bands at the same time. A huge advantage when there are a lot of LTE users in the area. Depending on the service provider, we have seen Internet speed doubling after switching to CAT6.

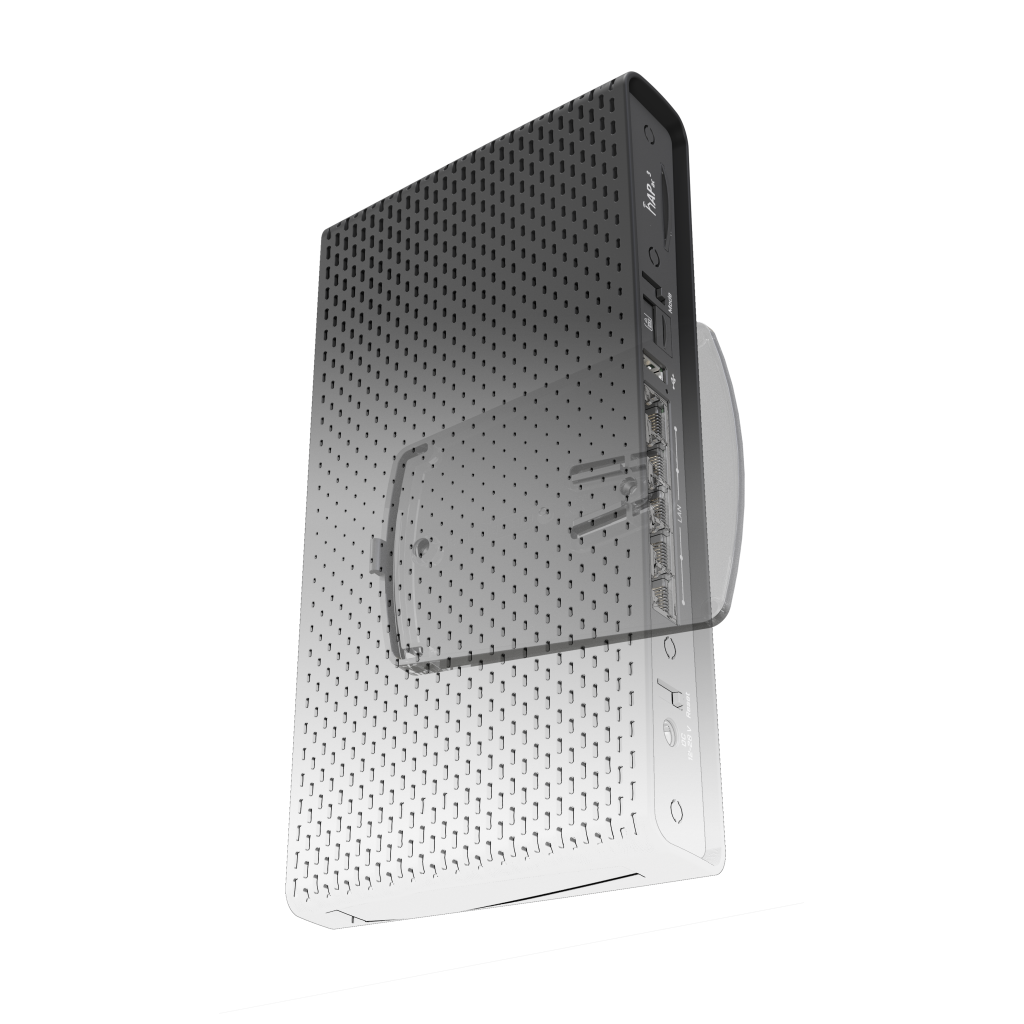

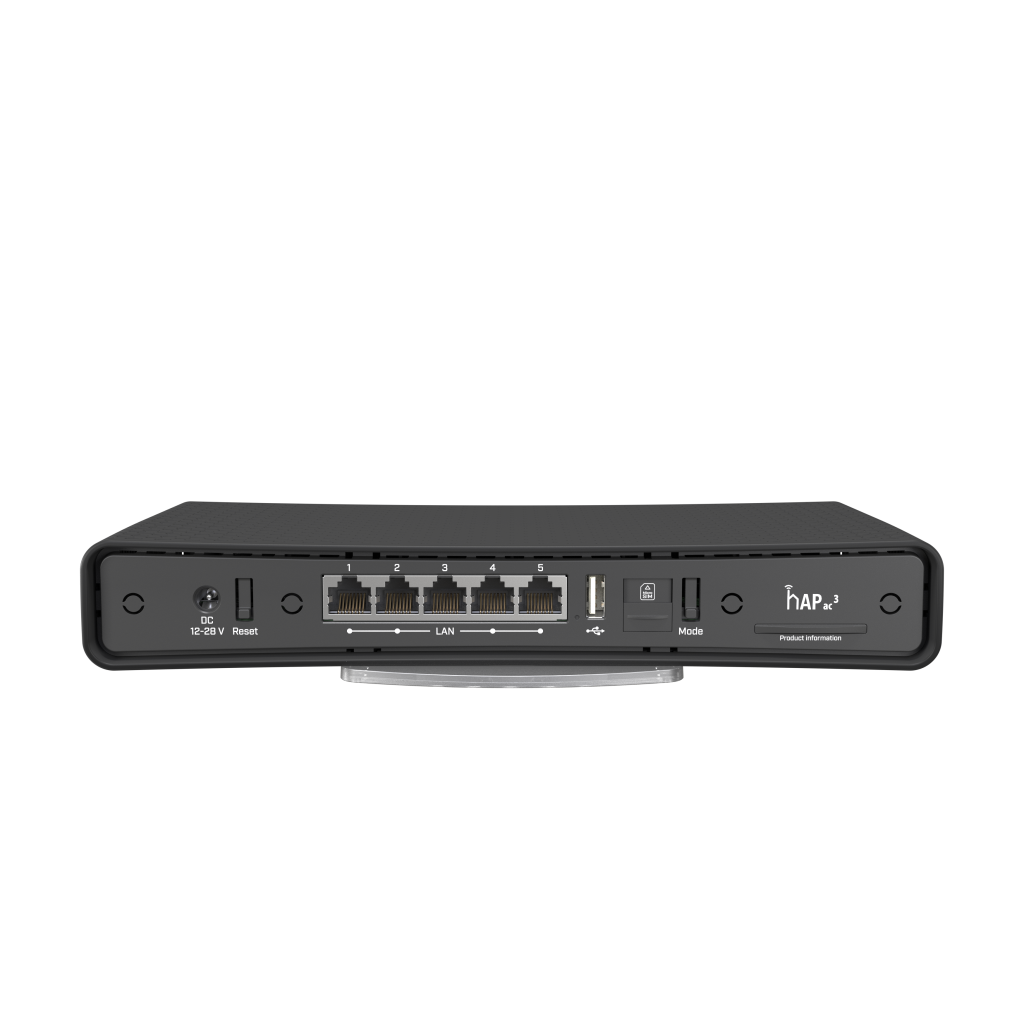

With 5 Gigabit Ethernet ports, 256 MB of RAM and quadcore CPU, hAP ac³ LTE6 kit can satisfy even the biggest and most demanding households. There is a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

Mobile/LTE


quick Guide

pdf brochure

Specifications
Product code RBD53GR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 251 x 129 x 39 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
IPsec hardware acceleration Yes
Tested ambient temperature -30°C to 60°C
Powering
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 20 W
Max power consumption without attachments 16 W
Cooling type Passive
Ethernet
10/100/1000 Ethernet ports 5
Peripherals
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Mobile
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC 35666210
Other
Mode button Yes
Wireless specifications
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5

Write a review

Please login or register to review

hAP ac³ LTE6 kit

  • Brand: Mikrotik
  • Product Code: RBD53GR-5HacD2HnD&R11e-LTE6
