BaseBox 2

Warning: Non-stocked item - long delivery delays may apply to orders beyond available stocks.

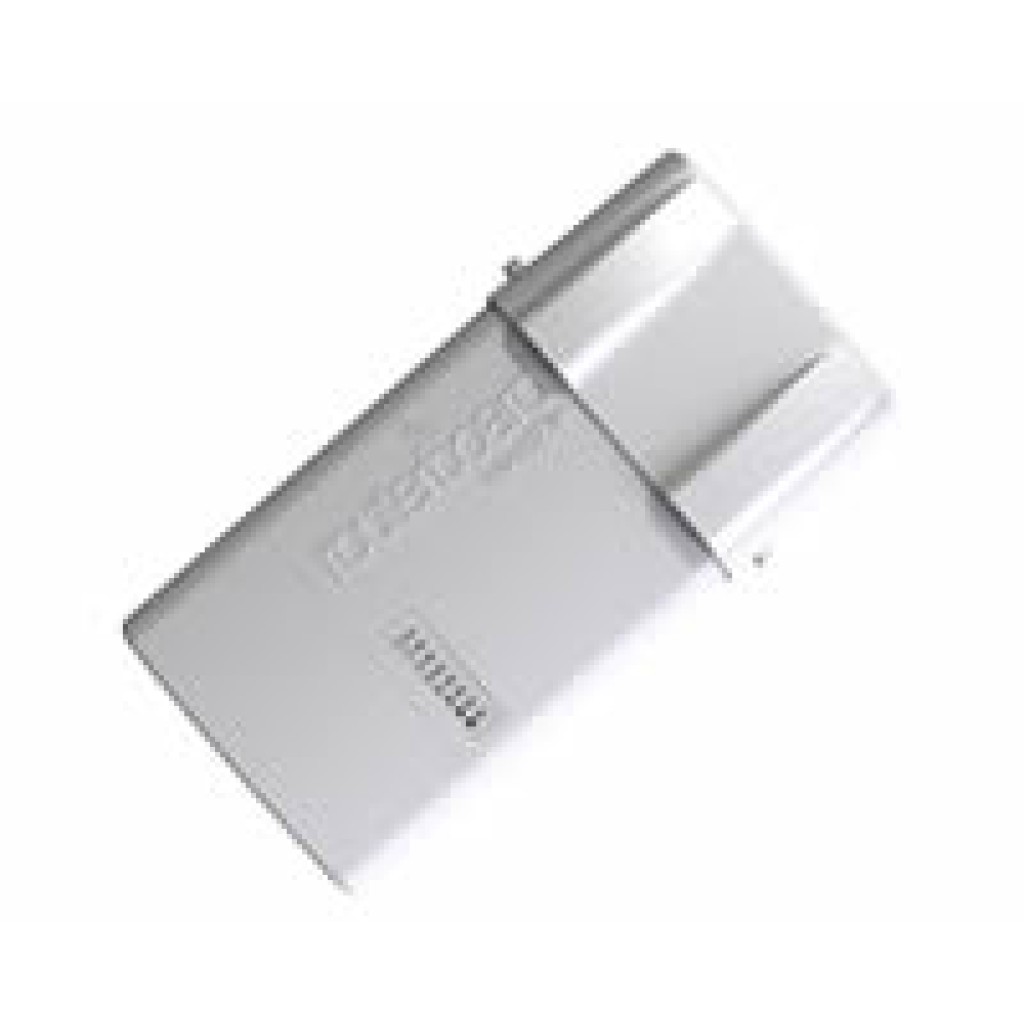

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount.

For optional EB-912  'Click Mount' adapter to suit RF Elements and ' Ubiquiti-style ' mounting system, select the mounting option below for just 55 cents!

Product code RB912UAG-2HPnD-OUT
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 246x135x50mm
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 64 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Number of DC inputs 1 (PoE-IN)
Max power consumption 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 8-30 V
10/100/1000 Ethernet ports 1
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Certification & Approvals
Certification FCC, IC
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Wireless specifications
2.4 GHz TX/RX
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 30 -100
11MBit/s 30 -94
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 24 -73
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model AR9342
Wireless 2.4 GHz generation Wi-Fi 4

Write a review

Please login or register to review

BaseBox 2

  • Brand: Mikrotik
  • Product Code: BaseBox 2
