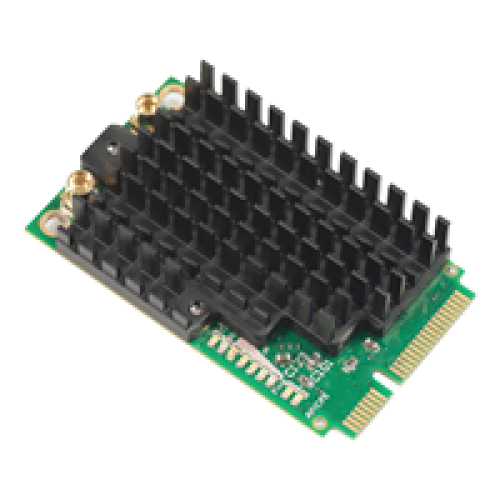

R11e-5HnD
High power wireless cards in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or the miniPCIe adapter card - RB14e.
| Product Specifications |
|
|---|---|
| Model: | 5HnD |
| Chipset | AR9580 |
| Frequency range | 4920-5920MHz |
| Format | miniPCIe |
| Standards | 802.11a/n |
| Max output power | 500mW (27dBm) |
| Dimensions | 51x30x13mm |
| Connectors | 2x MMCX |
| Features | 9 LED indicators, ESD protection |
| Temperature Starting / Operating | -5C to +65C / -30C to +65C |
|
MAX power consumption
|
5W |
|
TX/RX at MCS0
TX/RX at MCS7
TX/RX at 6Mbit
TX/RX at 54Mbit
|
26dBm / -96dBm |
Module Data Sheet
| General | ||||||||||||||||||||
| Name | R11e-5HnD | |||||||||||||||||||
| Can be used indoors | Yes | |||||||||||||||||||
| Certification | FCC, IC | |||||||||||||||||||
| MTBF | Approximately 100'000 hours at 25C | |||||||||||||||||||
| Tested ambient temperature | -40C to +65C | |||||||||||||||||||
| Can be used outdoors | Yes | |||||||||||||||||||
| Board | ||||||||||||||||||||
| Storage size | 4 KB | |||||||||||||||||||
| Storage type | FLASH | |||||||||||||||||||
| Format | miniPCI-e | |||||||||||||||||||
| Chipset | AR9580 | |||||||||||||||||||
| Wireless | ||||||||||||||||||||
| 802.11n | Yes | |||||||||||||||||||
| Antenna header count | 2 | |||||||||||||||||||
| TX power |
|
|||||||||||||||||||
| Wi-Fi generation | Wi-Fi 4 | |||||||||||||||||||
| Wireless 1 Max data rate | 300 Mbit/s | |||||||||||||||||||
| Wireless 1 Number of chains | 2 | |||||||||||||||||||
| Wireless 1 band | 5 GHz | |||||||||||||||||||
| Wireless 1 generation | Wi-Fi 4 | |||||||||||||||||||
| Wireless chip model | AR9582 | |||||||||||||||||||
| Wireless standards | 802.11a/n | |||||||||||||||||||
| 802.11a | Yes | |||||||||||||||||||
| Connector | MMCX | |||||||||||||||||||
| 5GHz | yes | |||||||||||||||||||
| Output power | up to 27dBm | |||||||||||||||||||
R11e-5HnD
- Brand: Mikrotik
- Product Code: R11e-5HnD
| Qty | 1 | 5 | 10 | 20 |
|---|---|---|---|---|
| Inc. | $67.00 | $60.30 | $58.29 | $56.95 |
| Ex. | $60.91 | $54.82 | $52.99 | $51.77 |
| Availability: | In Stock Now! |
| Further units due: | 2023-07-05 |
What does this info mean?
