CRS418-8P-8G-2S+5axQ2axQ-RM

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storagecompatibility, advanced network control/monitoring, and enough processing power even for some routing orL3 HW offloading… in a single 1U device and for the best price on the market?

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure.Also, there’s a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – builtfor real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering upaccess points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing therouting in your mid-sized office, CRS418 handles it all with ease – and on a budget!

Wi-Fi where it matters

2CRS418-8P-8G-2S+5axQ2axQ-RMThe all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivitywherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on atight budget – now you don’t need to carry a separate access point!

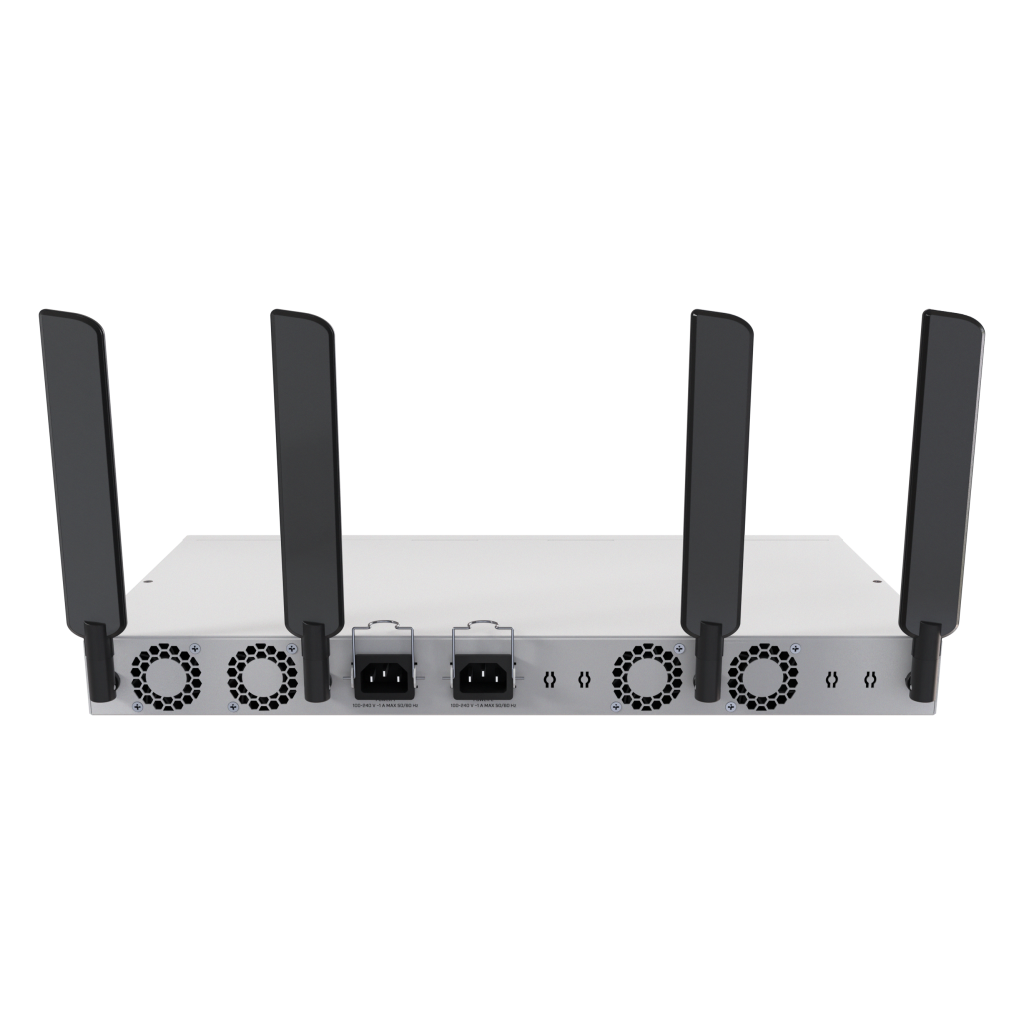

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includesdedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Specifications
Product code CRS418-8P-8G-2S+5axQ2axQ-RM
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
IPsec hardware acceleration Yes
Tested ambient temperature -20°C to 70°C
Powering
Number of AC inputs 2
AC input range 100-240
Max power consumption 227 W
Number of PSU slots 2
Max power consumption without attachments 43 W
Cooling type 4 fans
Frequency (Hz) 50-60
Ethernet
10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 8
Fiber
SFP+ ports 2
Peripherals
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 20
PoE-out
PoE-out ports Ether9-Ether16
PoE out 802.3af/at
Low voltage PoE-Out current limit 1.1 A
High voltage PoE-Out current limit 0.56 A
Total output power 150
Other
CPU temperature monitor Yes
Mode button Yes
PCB temperature monitor Yes
Current Monitor Yes
Voltage Monitor Yes
Wireless specifications
Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6

Write a review

Please login or register to review

CRS418-8P-8G-2S+5axQ2axQ-RM

  • Brand: Mikrotik
  • Product Code: CRS418-8P-8G-2S+5axQ2axQ-RM
