GPEN21

The GPEN21 is a smart power injector that serves as an advanced software controlled repeater. Not only can it power your uplink devices via PoE, it can also provide a range of useful software features:

• Interface management and monitoring
• GPEN link fault detection
• VLAN support
• SNMP reporting
• Basic traffic shaping

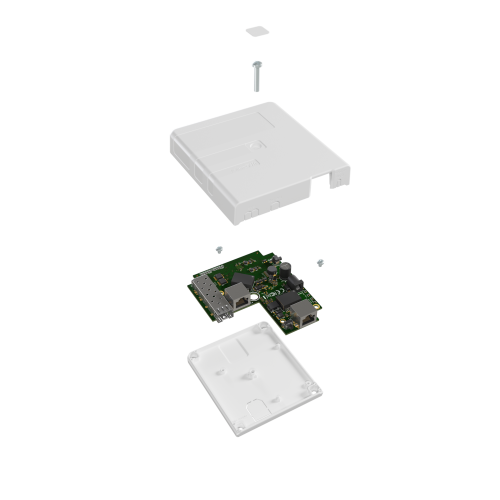

GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power optical module for uplink to provider, or to provide PoE to power Ethernet uplink to provider (that uses our GPeR and/or netPower products) The GPEN unit can be securely attached to a wall or the communications cabinet. The Ethernet cable can be routed either directly through its bottom cable opening or into the wall, as preferred.

 Product specifications:
Details
Product code  GPEN21
10/100/1000 Ethernet ports  2
Can be used indoors  Yes
DC jack input Voltage  12-57 V
Max out per port output (input < 30 V)  850 mA
Max out per port output (input > 30 V)  625 mA
Max power consumption  30 W
Max power consumption without attachments  3 W
Max total out (A)  850 mA
Mode button  Yes
Number of 1G Ethernet ports with PoE-out  1
Number of DC inputs  2 (PoE-IN, DC jack)
PoE in  802.3af/at
PoE in input Voltage  12-57 V
PoE out  Passive PoE up to 57V
PoE-out ports  Ether2
SFP ports  1
Tested ambient temperature  -20°C to 70°C

  pdf brochure

General
Name GPEN21
Can be used indoors Yes
Certification CE, EAC, ROHS
FAN count Passive
IP IP20
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Mode button Yes
Interfaces
10/100/1000 Ethernet ports 2
SFP ports 1
Number of 1G Ethernet ports with PoE-out 1
Powering
DC jack input Voltage 12-57 V
Max power consumption 30 W
Number of DC inputs 2
Max power consumption without attachments 3 W
Input voltage 12 - 57 V, Passive or 802.3af/at
PoE
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Max out per port output (input < 30 V) 850 mA
Max total out (A) 850 mA
PoE out Passive PoE up to 57V
PoE-out ports Ether2
Max out per port output (input > 30 V) 625 mA
Output Voltage Yes, Passive PoE up to 57 V
