GPERx6
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. Theelements attack your gear. The wiring is a nightmare. The GPERx6 solves bothproblems – a rugged, outdoor-ready switch that cuts cable clutter and keepsdeployments simple.
On the surface, it’s straightforward:
- 3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
- 3× 10G SFP+ cages for long-distance fiber
- 3 DC outputs for devices that don’t use PoE, for example, IoT setups

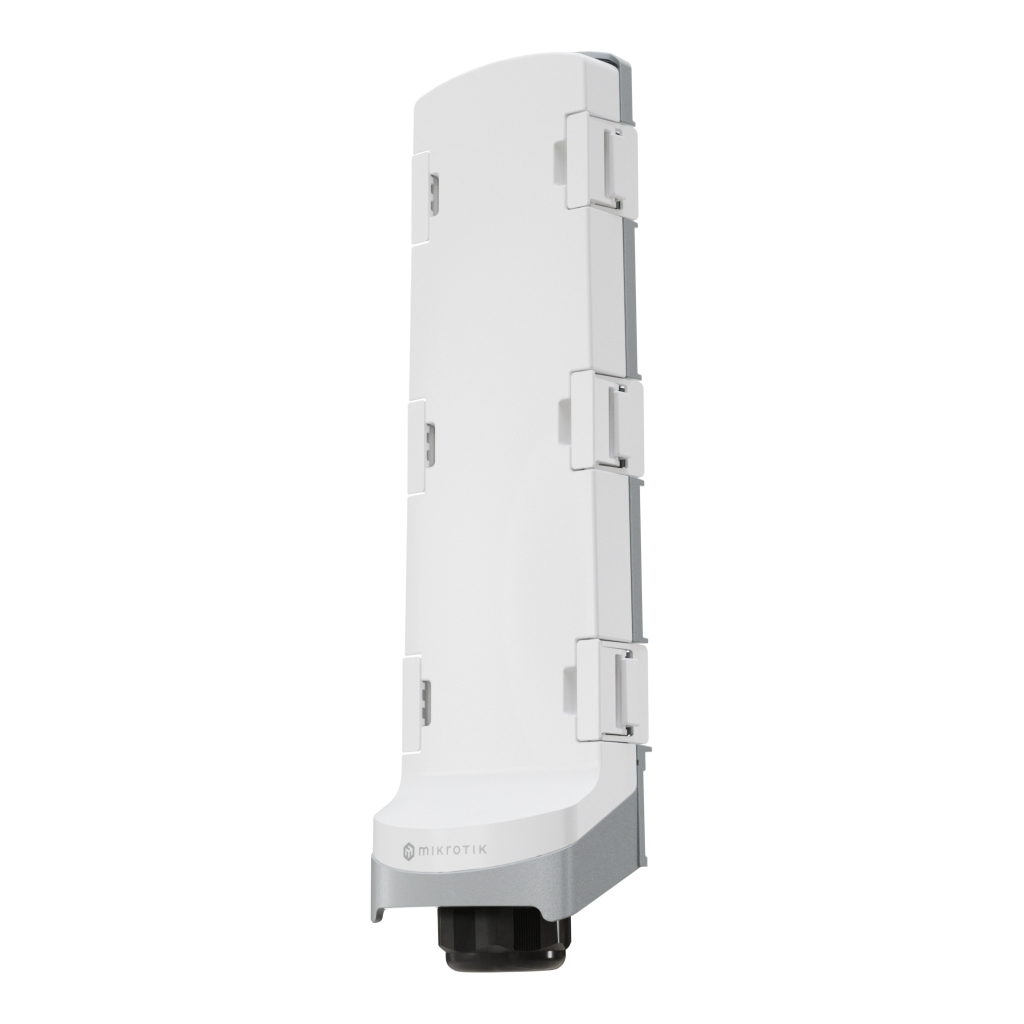

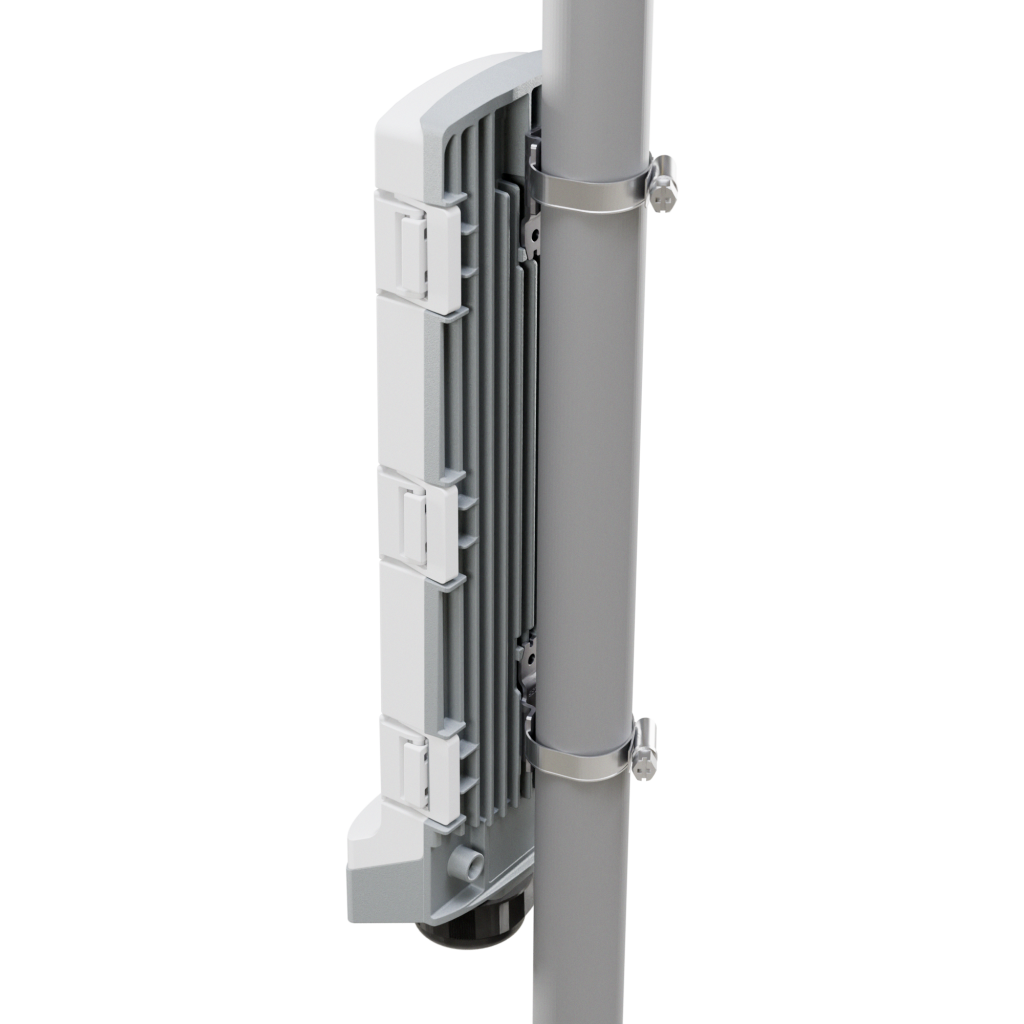

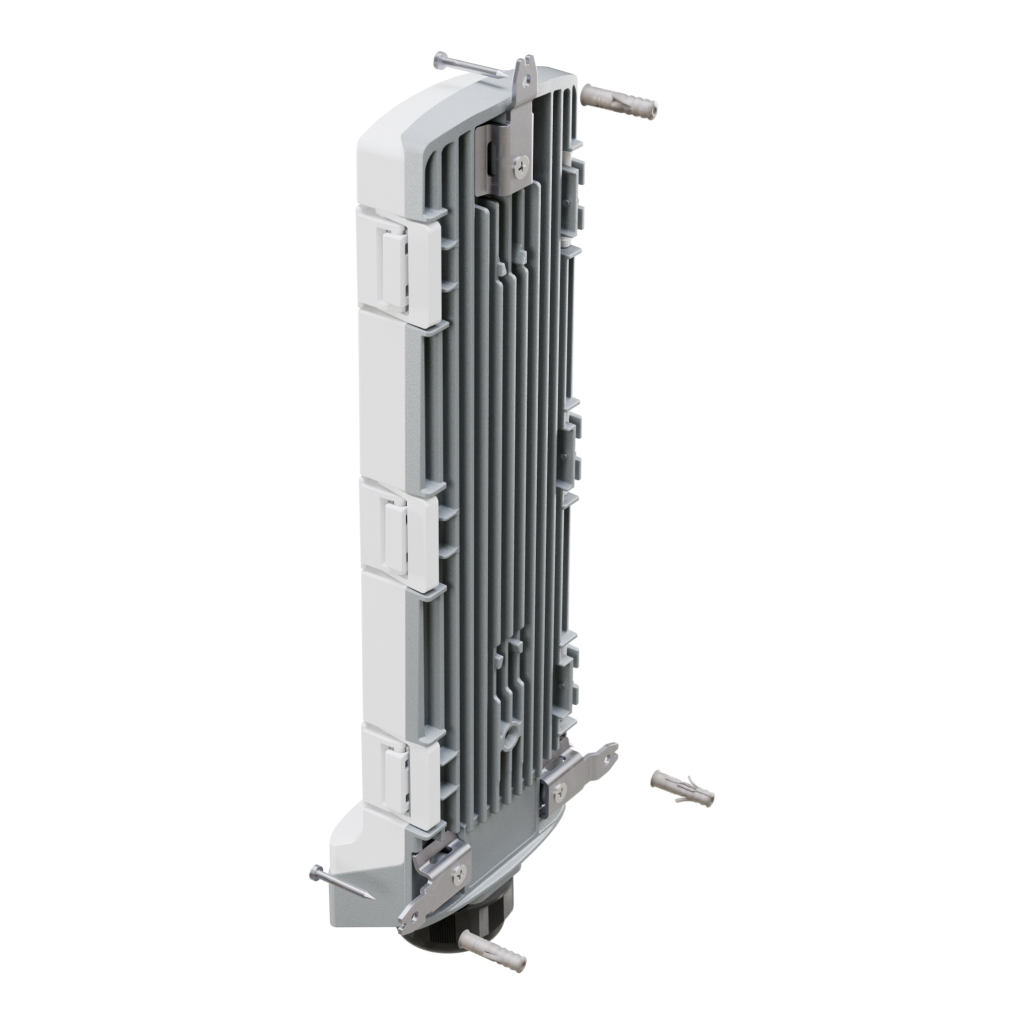

- Heavy-duty IP66 enclosure with handy mounting hardware
- A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)
But the real advantage is how it allows you to manage power and data overlong distances (1-2 km) even in the trickiest scenarios!
Specifications | |
Product code | CSS606-1G-2Gi-3S+OUT |
Switch chip model | 88E6193X |
Operating System | SwOS |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering | |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 12-57 V |
Max power consumption | 160 W |
Max power consumption without attachments | 6 W |
Cooling type | Passive |
PoE in | 802.3 bt |
PoE in input Voltage | 42-57 V |
Ethernet | |
10/100/1000 Ethernet ports | 3 |
Number of 1G Ethernet ports with PoE-out | 2 |
Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
Fiber | |
SFP+ ports | 3 |
Certification & Approvals | |
Certification | CE, EAC, ROHS |
IP | 66 |
PoE-out | |
PoE-out ports | Ether2-Ether3 |
PoE out | Passive PoE up to 57V |
Low voltage PoE-Out current limit | 1.2 A |
High voltage PoE-Out current limit | 0.625 A |
Max total out (A) | 2.4 A |
Total output power | 150 |
Other | |
CPU temperature monitor | Yes |
GPERx6
- Brand: Mikrotik
- Product Code: CSS606-1G-2Gi-3S+OUT
Qty | 1 | 2 | 5 | 10 | 20 |
---|---|---|---|---|---|
Inc. | $235.00 | $216.21 | $206.80 | $199.75 | $195.05 |
Ex. | $213.64 | $196.55 | $188.00 | $181.59 | $177.32 |
Availability: | No/Low Stock! |
Further units due: | 2025-11-17 |
