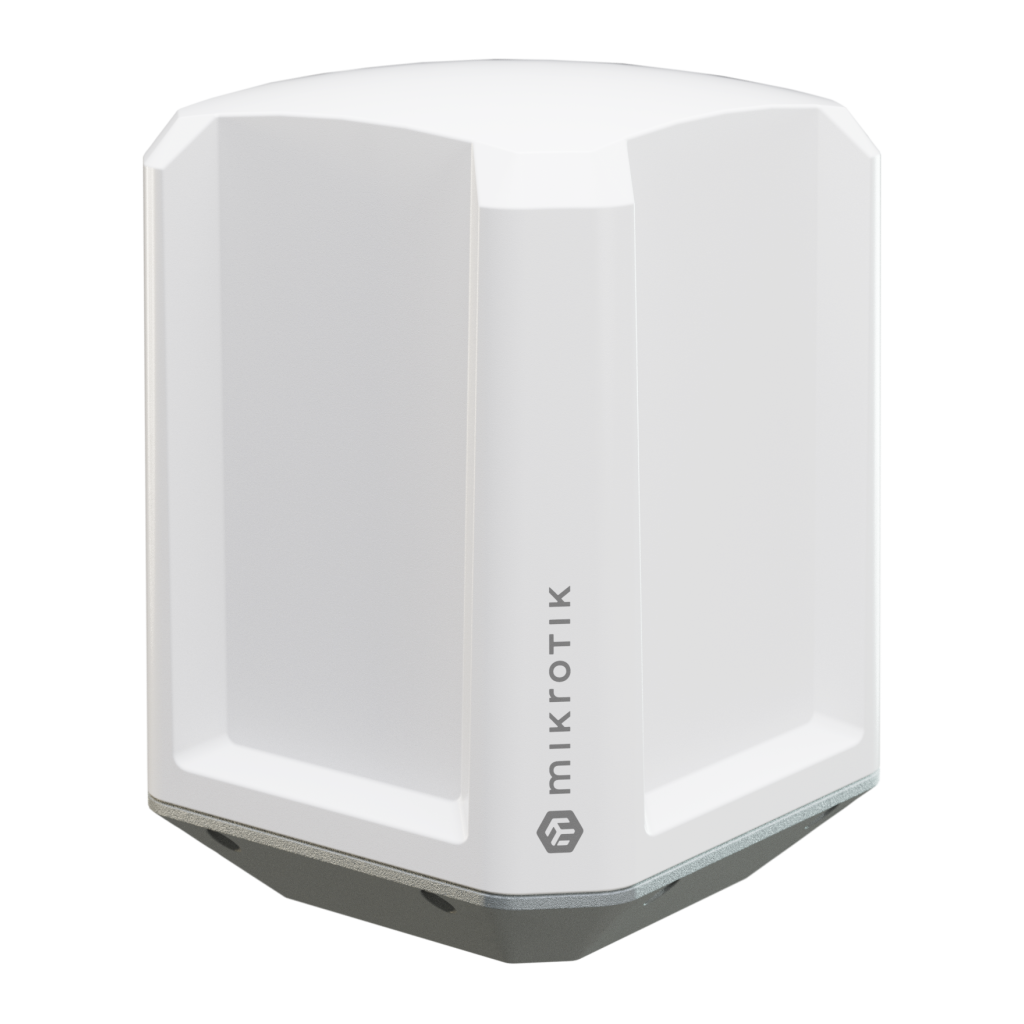

LAMP 5G R16
A brighter approach to 5G connectivity
Not every location has a perfect tower to point at. LAMP 5G R16 uses omnidirectional antennas and built-in eSIM to keep you connected to the best available network, making it ideal for urban deployments, backup connectivity, ports, industrial sites, and other demanding environments.
Not every location has a clear line to a single base station. In cities, ports, industrial sites, and busy transport hubs, there may be several towers within reach – and network conditions can change throughout the day.
LAMP 5G R16 takes a different approach. Instead of locking onto a single direction, its omnidirectional antenna system can connect to the best available network around it, helping maintain reliable service even when conditions change. A tower goes offline? Network conditions change? A better signal becomes available? LAMP 5G R16 can adapt without requiring antenna realignment.
eSIM – get online faster and easier than ever!
Deploy devices without handling physical SIM cards. LAMP 5G R16 features a built-in eSIM, allowing operators to activate data plans remotely and bring new installations online in minutes.
Need even more flexibility? LAMP 5G R16 also supports third-party eSIM providers and multiple eSIM profiles. Store different operator plans on a single device and switch between them as your connectivity requirements change. Whether you're managing backup connections, roaming deployments, or multi-operator networks, LAMP gives you more options without needing to swap physical SIM cards.
Built for the outdoors... and even the sea!

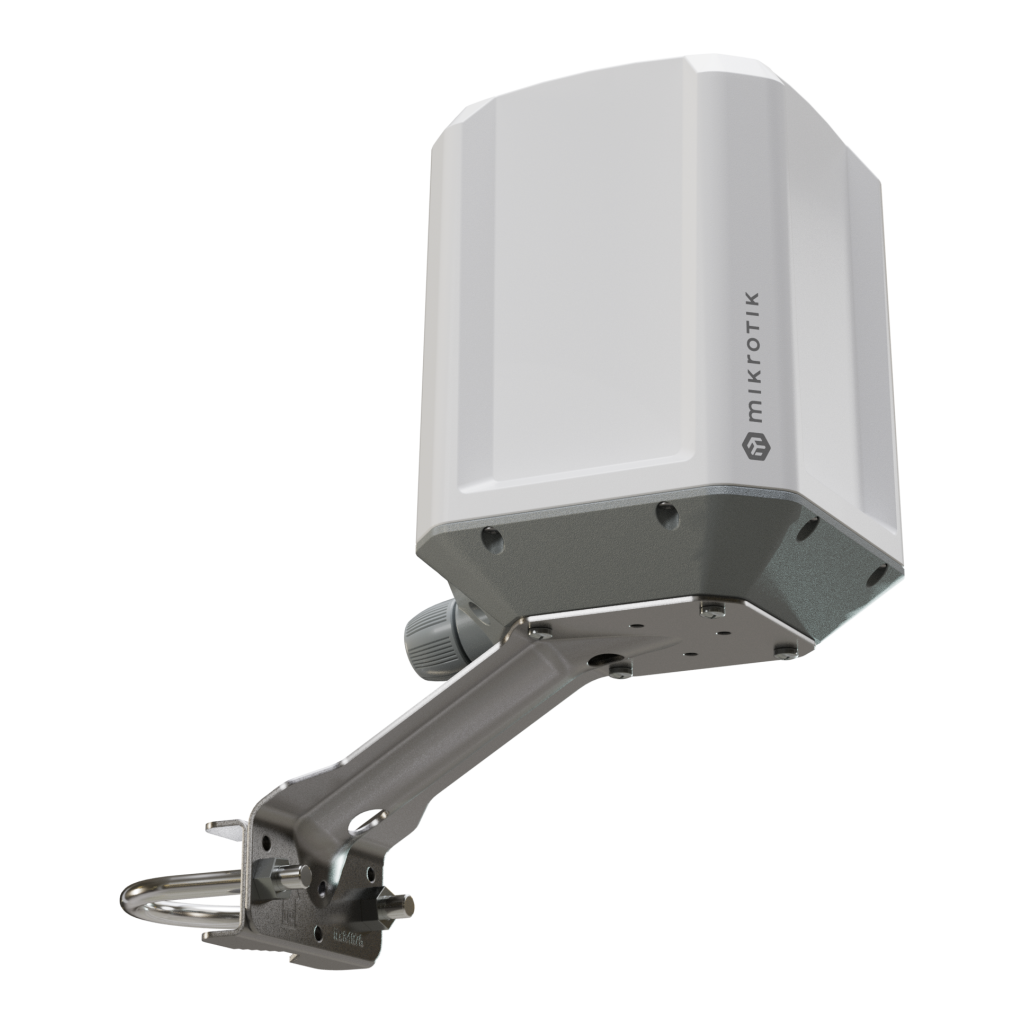

Rain, dust, heat, cold, or salty sea air – LAMP 5G R16 is ready for it. The IP67-rated enclosure, EN 60945 maritime certification, and included stainless-steel mounting bracket make it a reliable choice for demanding outdoor and marine deployments.
Whether deployed at ports, marinas, coastal infrastructure, or aboard vessels, the device is designed to meet the environmental and electromagnetic requirements expected in marine communication environments. Built-in GNSS support provides access to GPS, Galileo, BeiDou, and QZSS satellite systems. This enables accurate positioning information for fleet management, asset tracking, remote infrastructure, and location-aware* applications.
*GNSS functionality is intended for positioning, tracking, and non-critical location-aware applications. This device is not designed or certified for navigation, route guidance, or safety-critical marine navigation.
| Specifications | |
| Product code | LAMPGM&RG520F-EU |
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |

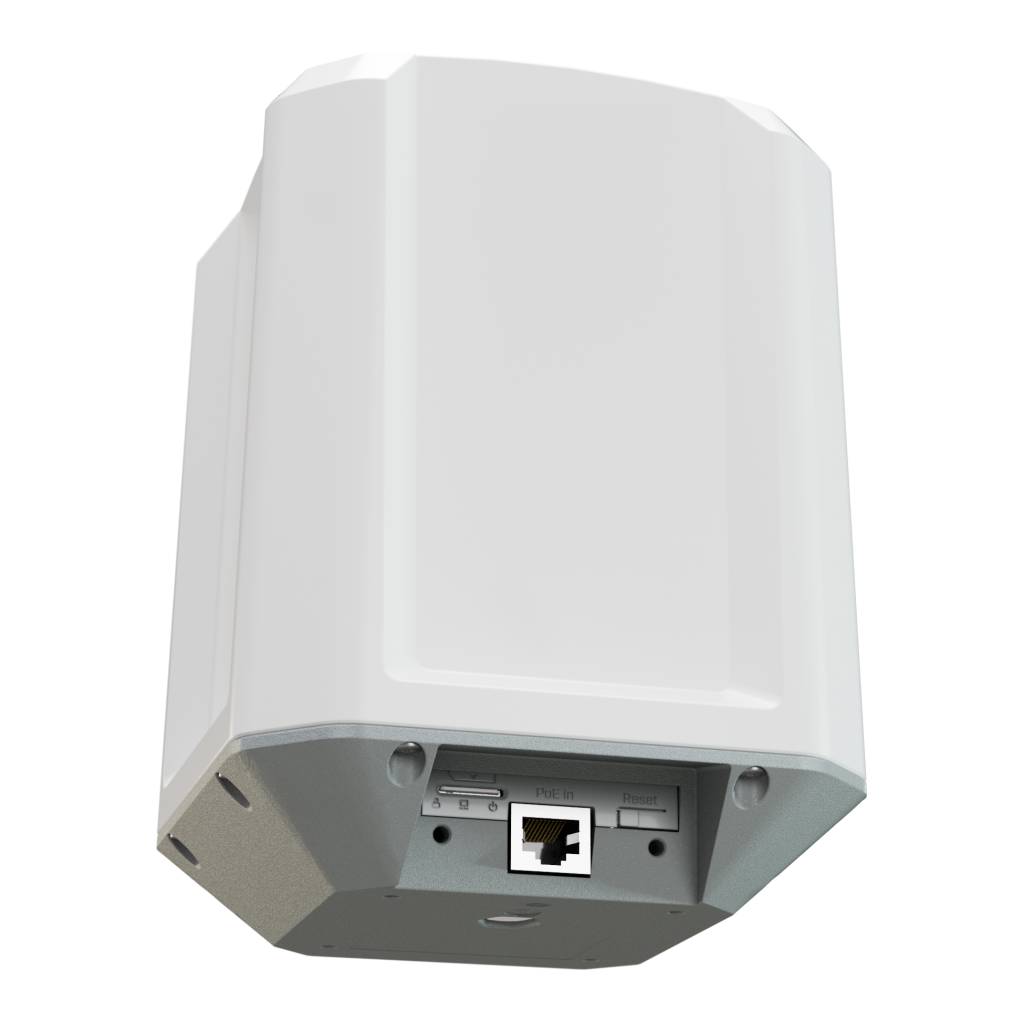

| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 10 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-56 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| Number of M.2 slots | 1 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 67 |
| Mobile | |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) 5 (850 MHz) 8 (900 MHz) |
| MIMO DL | 4x4 |
| LTE Category | 20 (DL: 2.0 Gbps; UL: 200 Mbps) |
| MIMO UL | 2x2 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 42 (3500 MHz) 43 (3700 MHz) |
| 5G NSA FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| TAC | 86945405 |
| 5G NSA TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz) |
| 5G SA FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| 5G SA TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz) |
| Product specifications | |
| Mode | Configuration |
| Specification | |
| kpps | Mbps |
| LAMPGM&RG520F-EU | 88F3720 1G one port test |
| Bridging | 25 bridge filter rules |
| Routing | 25 ip filter rules |
| Other | |
| eSIM | Yes |

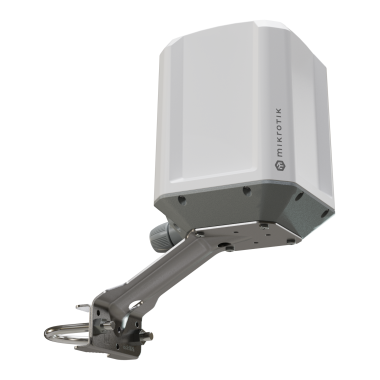

LAMP 5G R16
- Brand: Mikrotik
- Product Code: LAMPGM&RG520F-EU
| Qty | 1 | 2 | 4 | 8 | 16 |
|---|---|---|---|---|---|
| Inc. | $585.00 | $538.20 | $514.80 | $497.26 | $485.55 |
| Ex. | $531.82 | $489.27 | $468.00 | $452.05 | $441.41 |
| Availability: | No/Low Stock! |
| Further units due: | 2026-07-16 |
What does this info mean?
Tags: LAMPGM&RG520F-EU, Lamp, LAMPGM, 5G, R16
