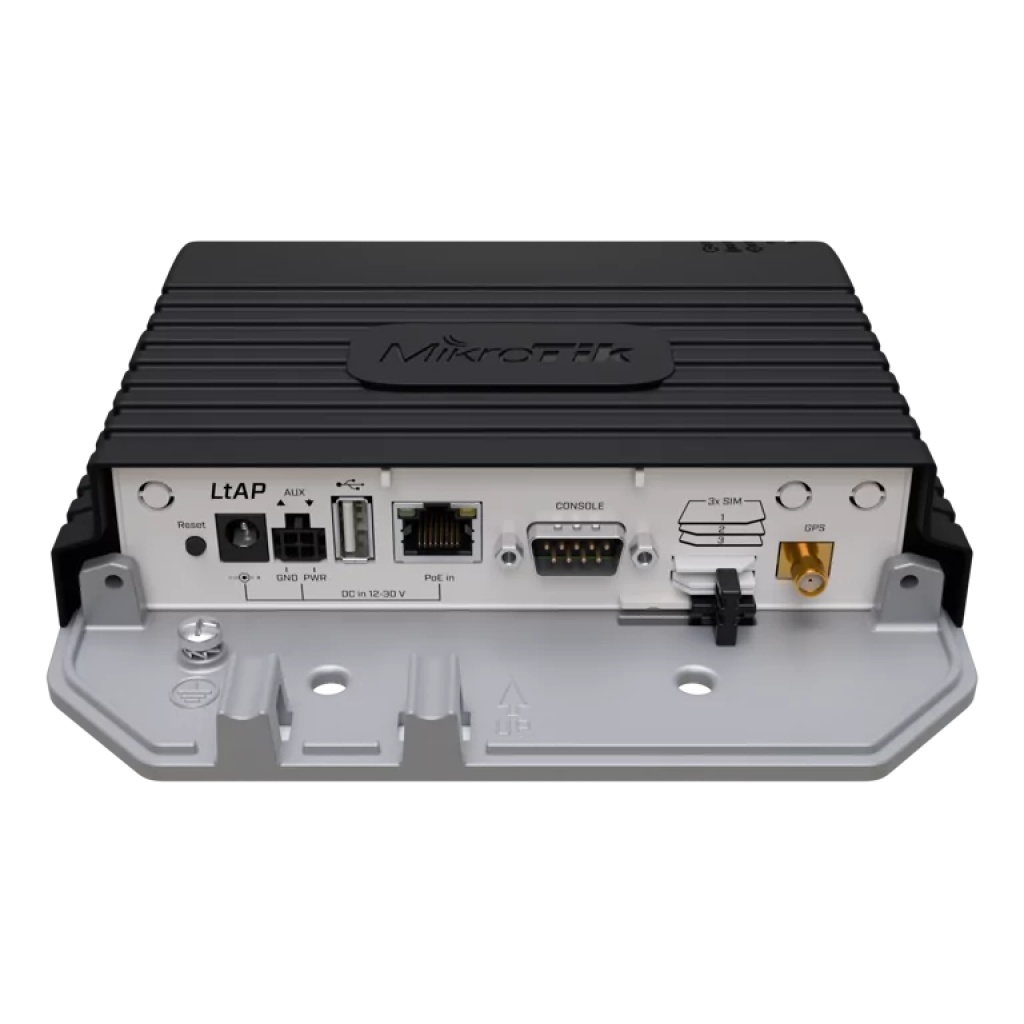

LtAP LTE7 kit: A heavy-duty 2.4GHz access point with LTE7

A compact, heavy-duty LTE access point with built-in GPS – now upgraded with a faster, smarter, more affordable LTE Category 7 modem. Add extensive networking and tracking options to your vehicle without breaking the bank!

The new LtAP LTE7 kit takes everything people love about LtAP – the rugged weatherproof case, built-in GPS, extreme power flexibility, and mini PCI-e expansion options… and adds our latest LTE Category 7 modem for a huge real-world improvement! Higher speed, stability and throughput is not the only benefit of the new modem. It comes with expanded frequency support including Band 32 for better performance in congested areas and during roaming.Same trusted LtAP form factor – no changes to installation or configuration. Just faster uploads, stronger rural performance, and a noticeably better price.

Perfect for logistics, transport & tracking

Just like in the previous model, you get 3 Mini SIM slots for automatic roaming as your vehicle crosses borders. Two internal LTE antennas keep things compact, while U.FL connectors allow external antennas for even better long-distance work. Built-in GPS (via SMA connector) makes LtAP ideal for fleet tracking, mobile video systems, asset security, and location-aware monitoring.

Whether it’s delivery trucks, buses, forklifts, agricultural machines, or utility fleets – LtAP keeps everything online and traceable in real time. The LtAP enclosure has also proven itself in public transport and other busy areas: extremely durable, discreet, and far less attention- grabbing than traditional routers.

LtAP is designed to run in nearly any environment. It supports: DC jack, Passive PoE-in, and Automotive power connector!

Users have even run the device from power banks in the field. And because LtAP includes two mini PCIe slots, you can expand it with a second LTE modem, a 5 GHz interface, or other add-ons – building exactly the setup you need.

Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!

Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job.

Specifications
Product code LtAP-2HnD&R11e-LTE7
Architecture MMIPS
CPU MT7621AT
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
RouterOS license 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-30 V
Ethernet
10/100/1000 Ethernet ports 1
Peripherals
Number of SIM slots 3 Modem (Mini SIM)
Serial console port RS232
MiniPCI-e slots 2
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Certification & Approvals
Certification CE, EAC, ROHS
IP 54
Mobile
3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz)
MIMO DL 2x2
LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO UL 1x1
LTE FDD bands 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz)
LTE TDD bands 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz)
TAC 35312597
Product specifications
Mode Configuration
Specification
kpps Mbps
LtAP-2HnD&R11e-LTE7r2 MT7621A IPsec throughput
Bridging 25 bridge filter rules
Routing 25 ip filter rules
Single tunnel AES-128-CBC + SHA1
256 tunnels AES-256-CBC + SHA256
Other
PCB temperature monitor Yes
GNSS standards GPS
Voltage Monitor Yes
Wireless specifications
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9382
Wireless 2.4 GHz generation Wi-Fi 4
