SXTsq 5 ax
Meet the SXTsq 5 ax — our first Wi-Fi 6 outdoor CPE, combiningthe best wireless technology with our trusted, compact SXTsqform factor.
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previousWi-Fi 5 model — making it one of the best-value weatherproofCPEs on the market.

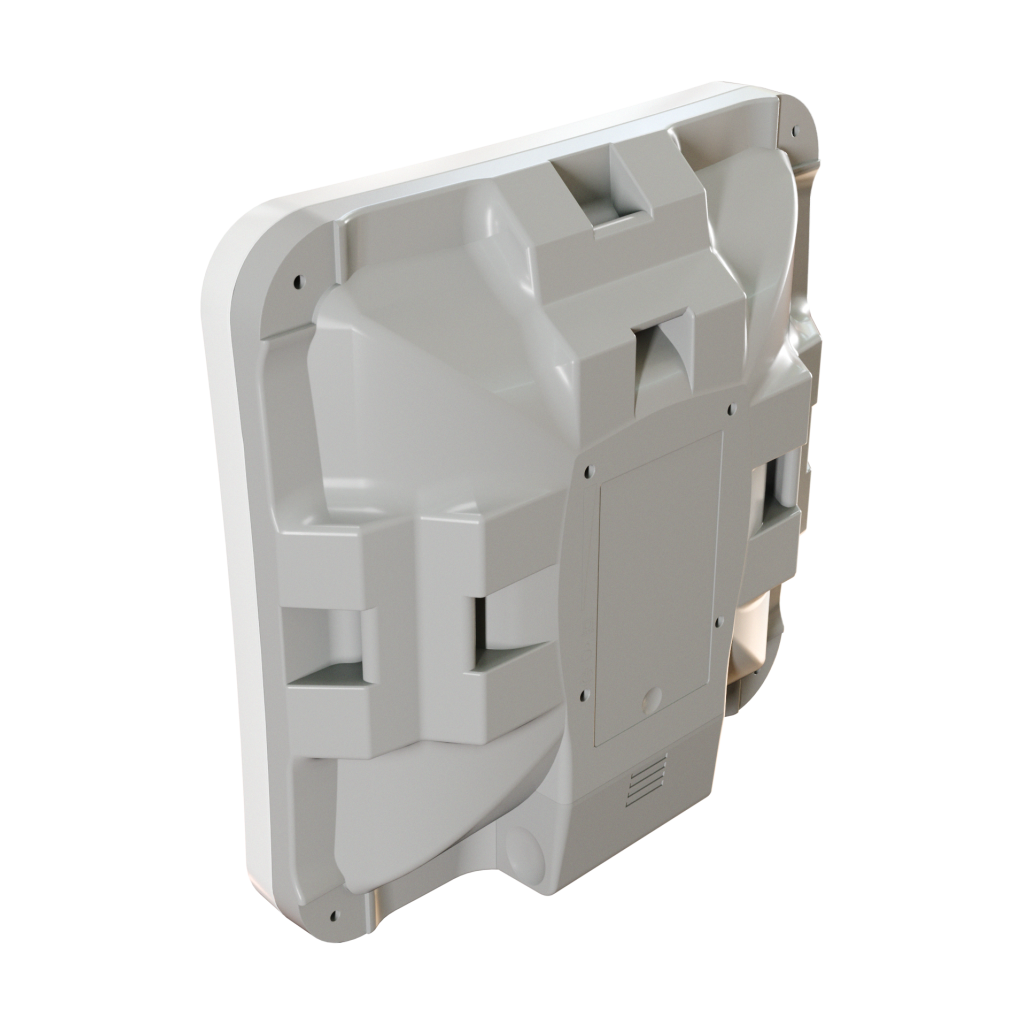

The enclosure can withstand all sorts of unpredictable weatherhazards, and it features slots for directly attaching a hose clampin three different mounting positions, including support forhorizontal railings — ideal for masts and poles in rooftop or towerdeployments.
Field-tested up to 3 km in high-interference, urban scenarios.Designed with the same trusted long-range architecture asprevious SXT models — capable of 10+ km links in line-of-sightdeployments.
With RouterOS license level 4, the SXTsq 5 ax isn’tjust a client — it can also be configured as a powerfulaccess point, giving you more flexibility in planningyour wireless infrastructure. And thanks to its compactsquare shape, it fits neatly into even the most space-sensitive deployments.
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
| Specifications | |
| Product code | SXTsq-5axD |
| Architecture | ARM 64bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-28 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 55 |
| Other | |
| CPU temperature monitor | Yes |
| Wireless specifications | |
| 5 GHz TX/RX | <table class="table product-table"> <thead> <tr> <th> 5 GHz </th> <th> Transmit (dBm) </th> <th> Receive Sensitivity </th> </tr> </thead> <tr> <td> 6MBit/s </td> <td> 24 </td> <td> -96 </td> </tr> <tr> <td> 54MBit/s </td> <td> 21 </td> <td> -80 </td> </tr> <tr> <td> MCS0 </td> <td> 24 </td> <td> -96 </td> </tr> <tr> <td> MCS7 </td> <td> 20 </td> <td> -75 </td> </tr> <tr> <td> MCS9 </td> <td> 18 </td> <td> -70 </td> </tr> <tr> <td> MCS11 </td> <td> 16 </td> <td> -67 </td> </tr> <thead> <tr class="spacer"> <th> 2.4 GHz </th> <th> Transmit (dBm) </th> <th> Receive Sensitivity </th> </tr> </thead> <tr> <td> 1MBit/s </td> <td> </td> <td> </td> </tr> <tr> <td> 11MBit/s </td> <td> </td> <td> </td> </tr> <tr> <td> 6MBit/s </td> <td> </td> <td> </td> </tr> <tr> <td> 54MBit/s </td> <td> </td> <td> </td> </tr> <tr> <td> MCS0 </td> <td> </td> <td> </td> </tr> <tr> <td> MCS7 </td> <td> </td> <td> </td> </tr> <tr> <td> MCS9 </td> <td> </td> <td> </td> </tr> <tr> <td> MCS11 </td> <td> </td> <td> </td> </tr> </table> |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
SXTsq 5 ax
- Brand: Mikrotik
- Product Code: SXTsq-5axD
| Qty | 1 | 2 | 5 | 10 | 20 |
|---|---|---|---|---|---|
| Inc. | $112.00 | $106.40 | $98.56 | $95.21 | $92.96 |
| Ex. | $101.82 | $96.73 | $89.60 | $86.55 | $84.51 |
| Availability: | In Stock Now! |
| Further units due: | 2025-07-05 |
