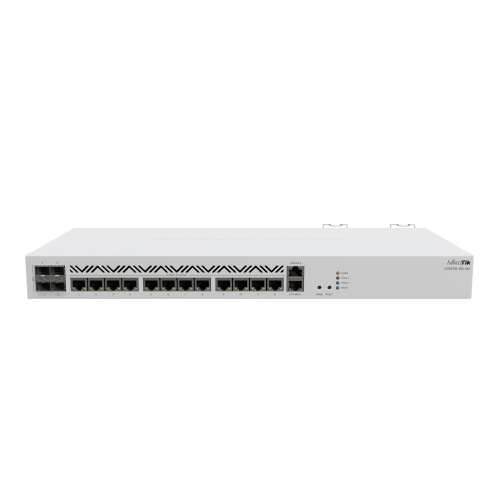

CCR2116-12G-4S+

10G networking meets the unparalleled power of a modern ARM CPU ?
NOTE: This product ships with RouterOSv7 installed and can NOT be downgraded to run routerOSv6.

The most powerful CCR so far!

We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.

But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family!

If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.

Specifications
Product code CCR2116-12G-4S+
Architecture ARM 64bit
CPU AL73400
CPU core count 16
CPU nominal frequency 2000 MHz
Switch chip model 98DX3255
Dimensions 443 x 199 x 44 mm
RouterOS license 6
Operating System RouterOS (v7 only)
Size of RAM 16 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
IPsec hardware acceleration Yes
Tested ambient temperature -20°C to 60°C
Powering
Number of AC inputs 2
AC input range 100-240
Max power consumption 83 W
Max power consumption without attachments 60 W
Cooling type 4 fans
Ethernet
10/100/1000 Ethernet ports 13
Fiber
SFP+ ports 4
Peripherals
Serial console port RJ45
Number of M.2 slots 1
Certification & Approvals
Certification CE, EAC, ROHS
Other
CPU temperature monitor Yes
Mode button Yes
PCB temperature monitor Yes
