hAP ax S

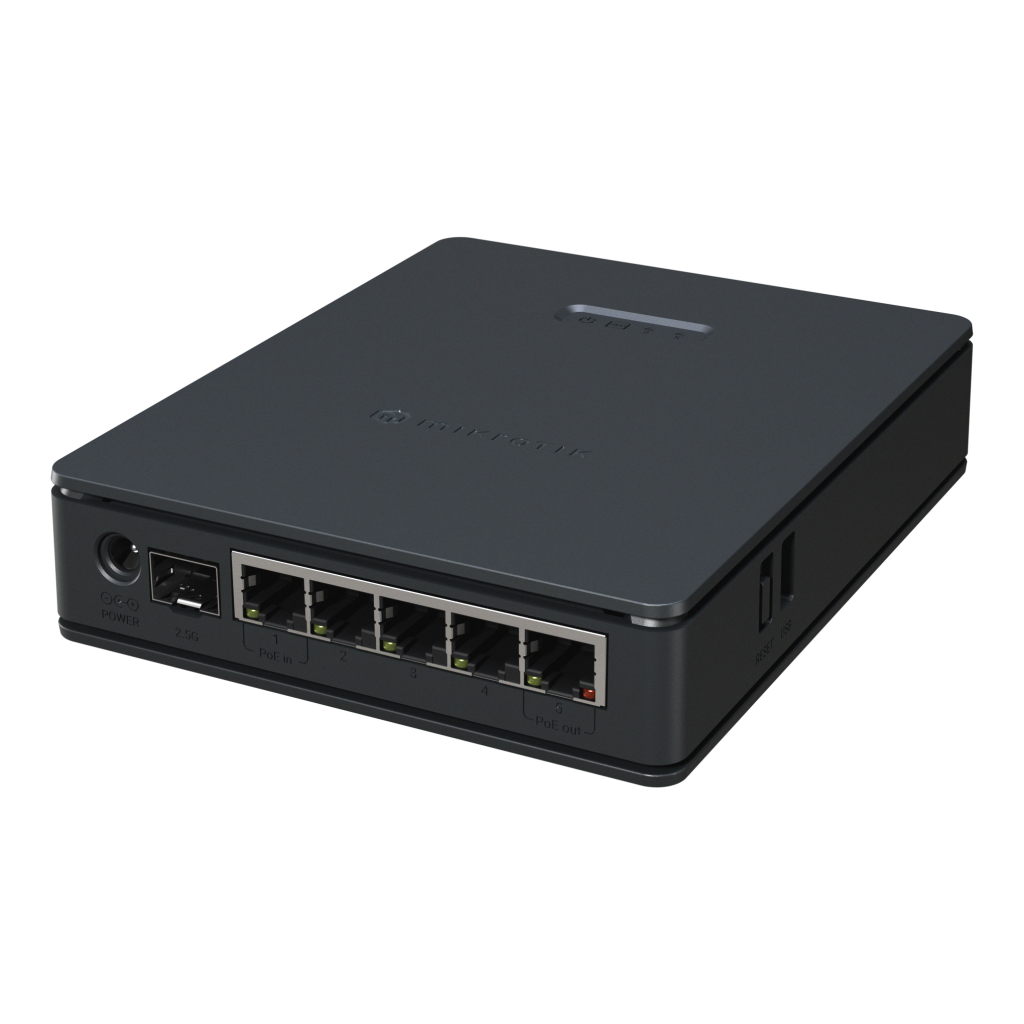

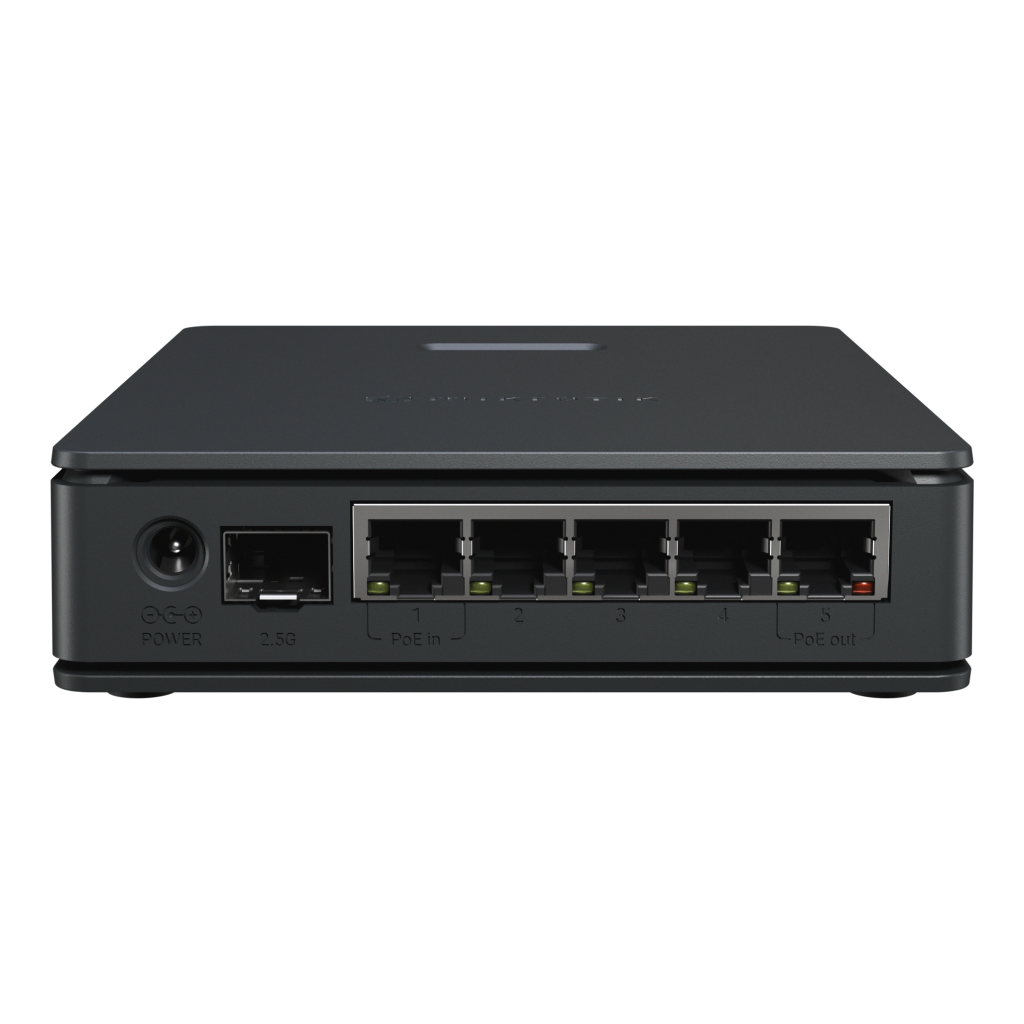

Meet the new hAP ax S – our most cost-effective Wi-Fi 6 access point yet. It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box! Under the sleek exterior lies a dual-core ARM CPU, dual-band Wi-Fi 6, USB 2.0, five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.

Triple-chain 5 GHz: the key to stable, gigabit-class Wi-Fi

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-worldthroughput of around 800–900 Mbit/s. That means smooth streaming, fasterdownloads, and stable performance across multiple devices – even in crowdedenvironments.It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VRheadsets, offering higher resolution and lower latency without the cables.Unlike single-purpose “gaming” access points, the hAP ax S gives you the fullperformance, flexibility, and future-proofing of RouterOS v7!

Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.

Your network, your rules

Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexiblenetworking software on the market.In the age of growing data security and privacy challenges, RouterOS gives you completecontrol – with no subscriptions, no upsells, no locked features. Whether you’re configuringyour first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7grows with you.VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities areendless. For example: you can easily isolate IoT devices into separate subnets to protect yourhome network from unwanted access via the smart fridge or those flashy LED light hubs.

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Specifications
Product code E62iUGS-2axD5axT
Architecture ARM 32-bit
CPU EN7562CT
CPU core count 2
CPU nominal frequency 950 MHz
Switch chip model EN7529CT
RouterOS license 4
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
IPsec hardware acceleration Yes
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 34 W
Max power consumption without attachments 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
Ethernet
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1
Fiber
SFP ports 1 (2.5G supported)
Peripherals

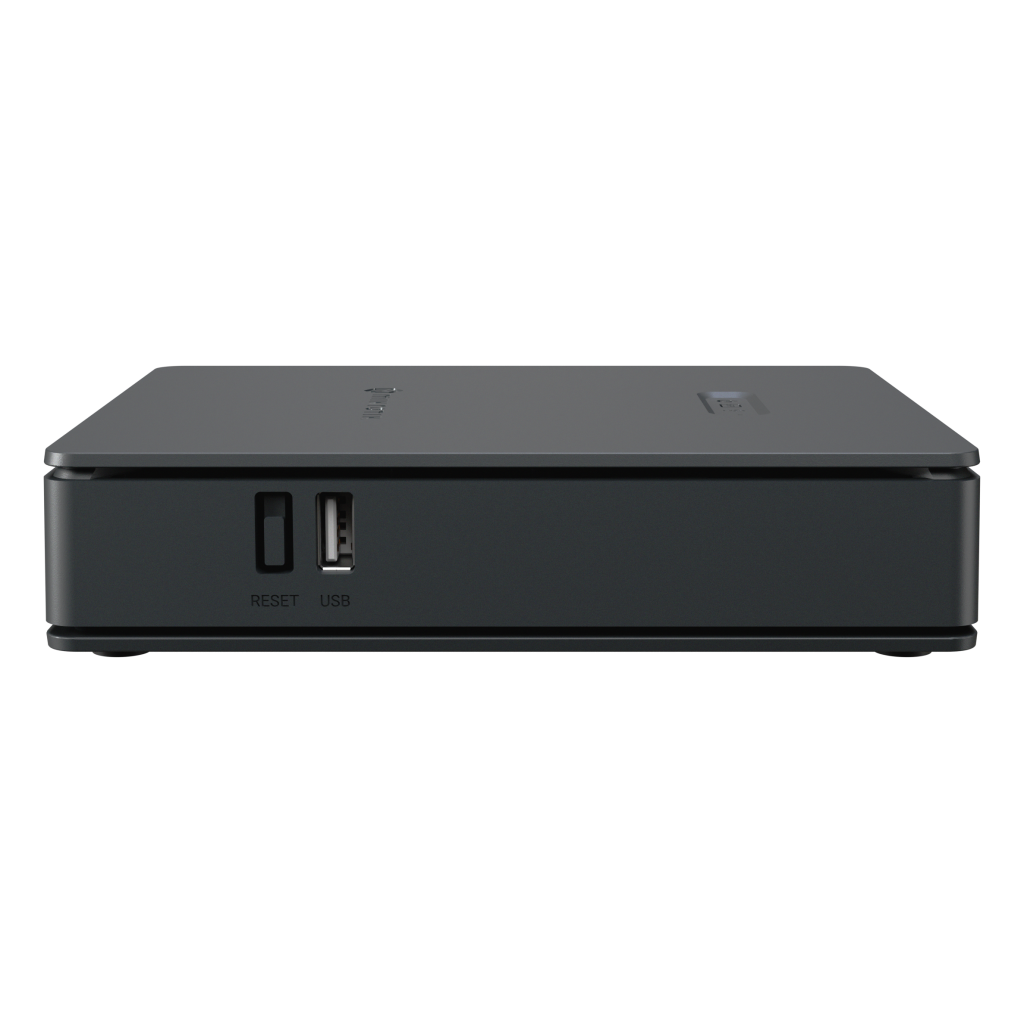

Number of USB ports 1
USB Power Reset Yes
USB slot type USB 2.0 type A
Max USB current (A) 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 20
PoE-out
PoE-out ports Ether5
PoE out Passive PoE
Low voltage PoE-Out current limit 0.6 A
Max total out (A) 0.6 A
Total output current 0.6
Total output power 16.8
Other
CPU temperature monitor Yes
Wireless specifications
2.4 GHz TX/RX <table class="table product-table"> <thead> <tr> <th> 2.4 GHz </th> <th> Transmit (dBm) </th> <th> Receive Sensitivity </th> </tr> </thead> <tr> <td> 1MBit/s </td> <td> 24 </td> <td> -100 </td> </tr> <tr> <td> 11MBit/s </td> <td> 24 </td> <td> -94 </td> </tr> <tr> <td> 6MBit/s </td> <td> 23 </td> <td> -96 </td> </tr> <tr> <td> 54MBit/s </td> <td> 21 </td> <td> -80 </td> </tr> <tr> <td> MCS0 </td> <td> 22 </td> <td> -96 </td> </tr> <tr> <td> MCS7 </td> <td> 20 </td> <td> -75 </td> </tr> <tr> <td> MCS9 </td> <td> 19 </td> <td> -70 </td> </tr> <tr> <td> MCS11 </td> <td> 15 </td> <td> -67 </td> </tr> </table>
5 GHz TX/RX <table class="table product-table"> <thead> <tr> <th> 5 GHz </th> <th> Transmit (dBm) </th> <th> Receive Sensitivity </th> </tr> </thead> <tr> <td> 6MBit/s </td> <td> 23 </td> <td> -96 </td> </tr> <tr> <td> 54MBit/s </td> <td> 21 </td> <td> -81 </td> </tr> <tr> <td> MCS0 </td> <td> 23 </td> <td> -96 </td> </tr> <tr> <td> MCS7 </td> <td> 20 </td> <td> -77 </td> </tr> <tr> <td> MCS9 </td> <td> 20 </td> <td> -72 </td> </tr> <tr> <td> MCS11 </td> <td> 18 </td> <td> -69 </td> </tr> </table>
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5.5
Wireless 2.4 GHz chip model MT7916
Wireless 2.4 GHz generation Wi-Fi 6
WiFi speed AX2400
Wireless 5 GHz Max data rate 1800 Mbit/s
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 8.07
Wireless 5 GHz chip model MT7976
Wireless 5 GHz generation Wi-Fi 6
