LHG 5 ax
Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure – the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 – all without breaking the budget.
The 802.11ax standard brings crucial improvements for long-distance wireless links – including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today – and be ready too!

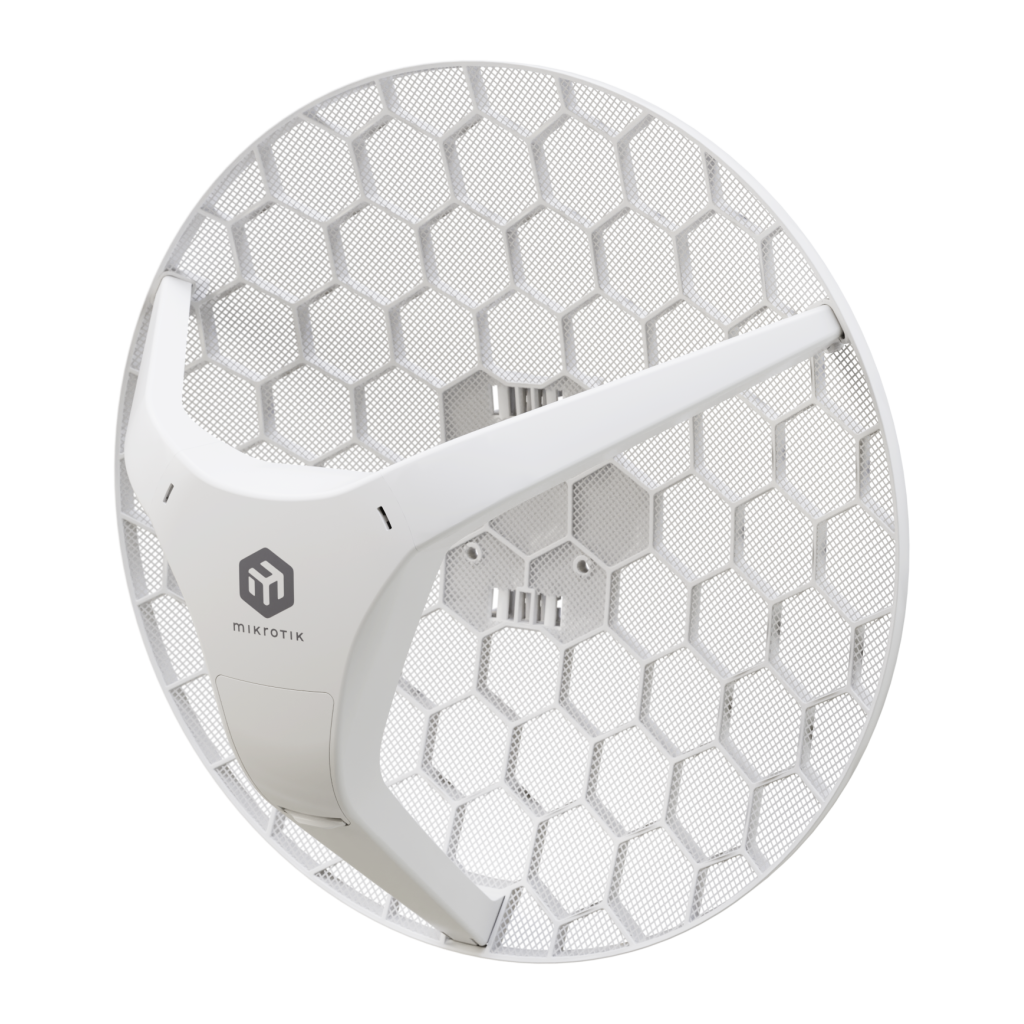

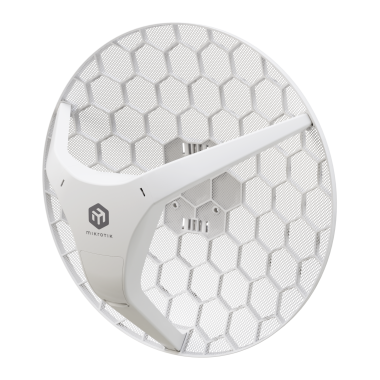

LHG 5 ax is compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios. Check related devices below for the XL version if you need a longer distance!
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Specifications | |
Product code | LHG-5axD |
Architecture | ARM 32bit |
CPU | IPQ-5010 |
CPU core count | 2 |
CPU nominal frequency | 800 MHz |
RouterOS license | 3 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Powering | |

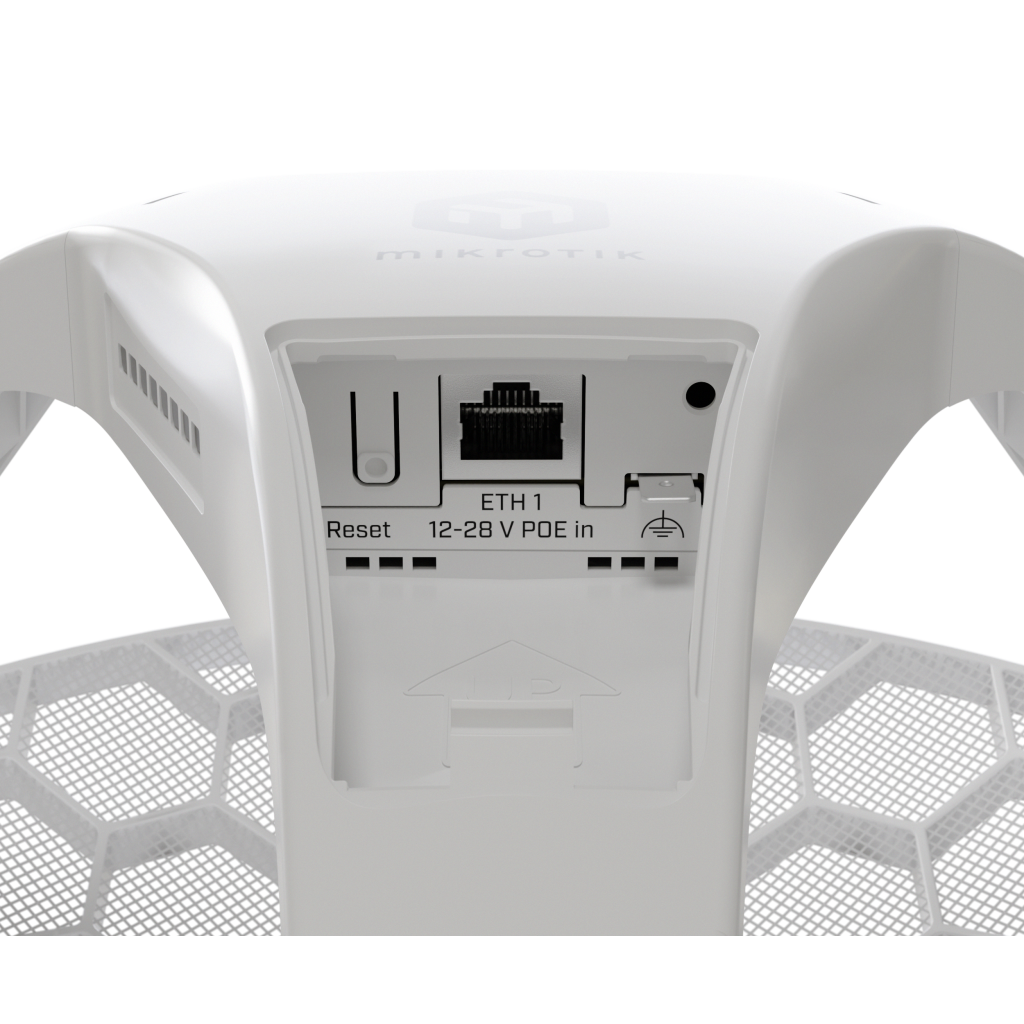

Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 5 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 12-28 V |
Ethernet | |
10/100/1000 Ethernet ports | 1 |
Certification & Approvals | |
Certification | CE, FCC, IC, EAC, ROHS |
IP | 54 |
Other | |
CPU temperature monitor | Yes |
Wireless specifications | |
5 GHz TX/RX | <table class="table product-table"> <thead> <tr> <th> 5 GHz </th> <th> Transmit (dBm) </th> <th> Receive Sensitivity </th> </tr> </thead> <tr> <td> 6MBit/s </td> <td> 24 </td> <td> -96 </td> </tr> <tr> <td> 54MBit/s </td> <td> 21 </td> <td> -80 </td> </tr> <tr> <td> MCS0 </td> <td> 24 </td> <td> -96 </td> </tr> <tr> <td> MCS7 </td> <td> 20 </td> <td> -75 </td> </tr> <tr> <td> MCS9 </td> <td> 19 </td> <td> -70 </td> </tr> <tr> <td> MCS11 </td> <td> 17 </td> <td> -67 </td> </tr> </table> |
Wireless 5 GHz Max data rate | 1200 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac/ax |
Antenna gain dBi for 5 GHz | 24.5 |
Wireless 5 GHz chip model | QCN-6102 |
Wireless 5 GHz generation | Wi-Fi 6 |
LHG 5 ax
- Brand: Mikrotik
- Product Code: LHG-5axD
Qty | 1 | 2 | 5 | 10 | 20 |
---|---|---|---|---|---|
Inc. | $246.00 | $236.45 | $223.08 | $217.35 | $213.53 |
Ex. | $223.64 | $214.95 | $202.80 | $197.59 | $194.12 |
Availability: | No/Low Stock! |
Further units due: | 2025-10-06 |
