LHG XL 5 ax

Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.

The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

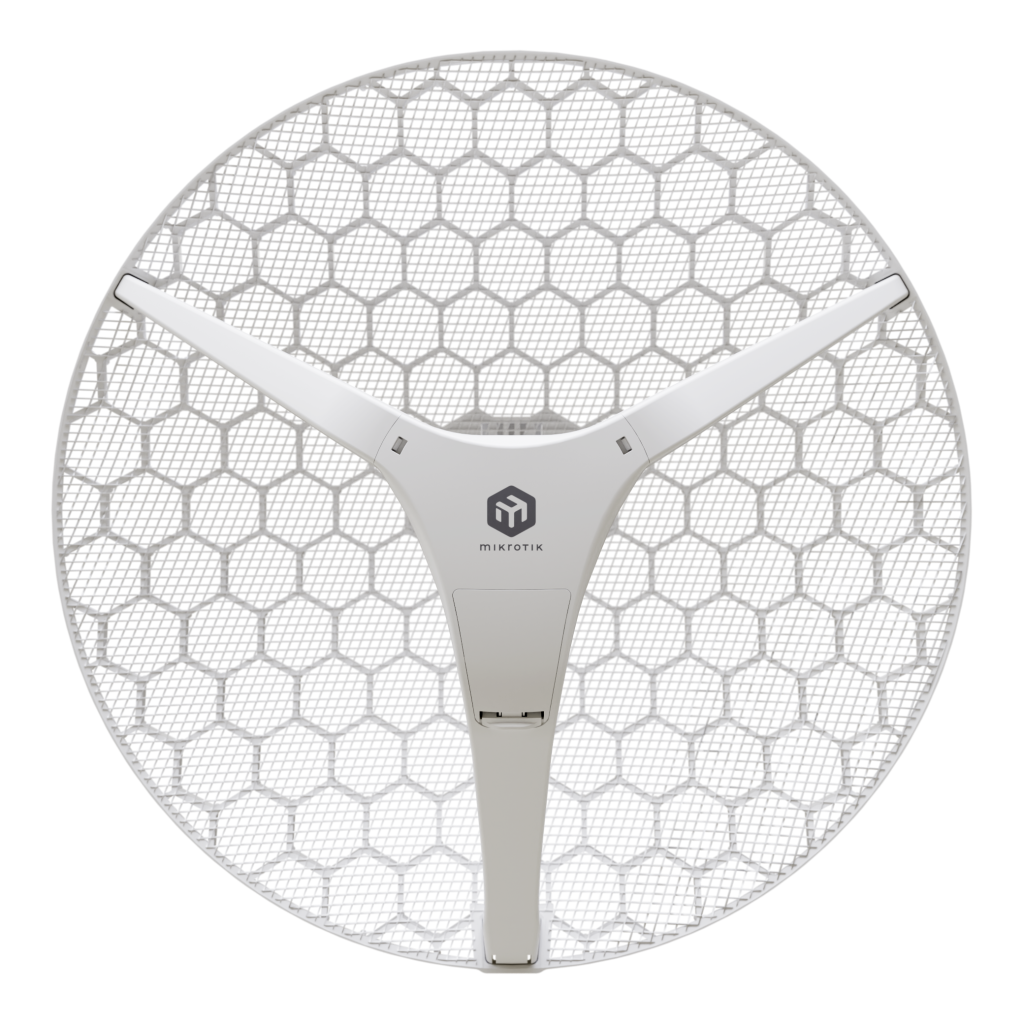

LHG XL 5 ax is an extra large long-range CPE with a 27 dBi antenna. Perfect for links up to 30 km in ideal conditions. Check related devices below for the regular version if you're working at a closer range!

Specifications
Product code LHG-5axD-XL
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Powering

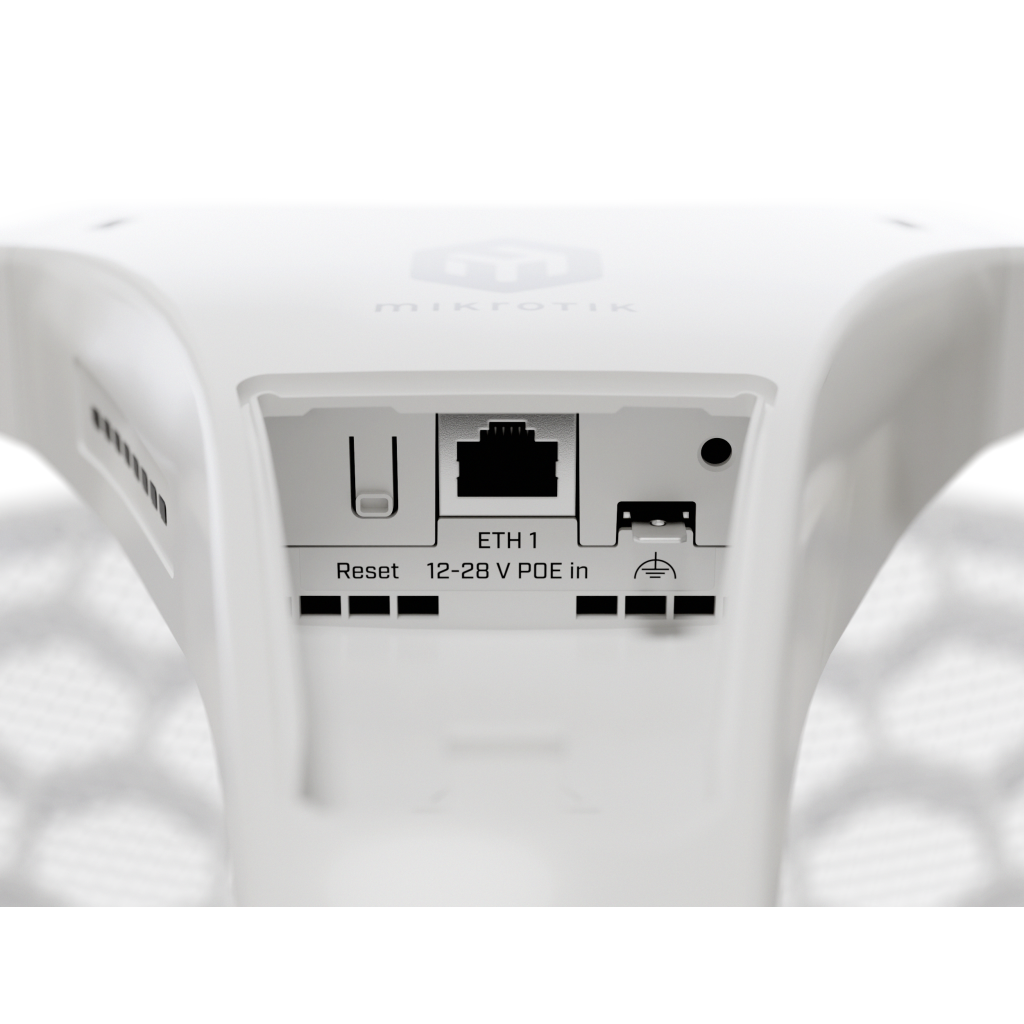

Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-28 V
Ethernet
10/100/1000 Ethernet ports 1
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP 54
Other
CPU temperature monitor Yes
Wireless specifications
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 27
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Write a review

Please login or register to review

LHG XL 5 ax

  • Brand: Mikrotik
  • Product Code: LHG-5axD-XL
