LHGG LTE7 kit
The new LHGG LTE7 kit upgrades the popular LTE6 model with a CAT7 modem and doubled upload speed, while keeping the proven 17 dBi long-range antenna and rugged grid design – now at a significantly better price.
Wherever life takes you,
the signal follows
The LHGG LTE7 kit is designed for reliable “last mile” Internet access in remote locations. Mount it outdoors on a pole or mast and connect even where cell phones fail. Equipped with a high-gain 17 dBi directional antenna and a CAT7 LTE modem with up to 100 Mbps upload speed, it delivers stronger performance and better responsiveness in rural and high-demand environments. The doubled uplink capacity makes it better suited for video surveillance, VPN, remote work, and multi-user rural deployments.
“Must have been the wind!” –
not a problem for LHGG!

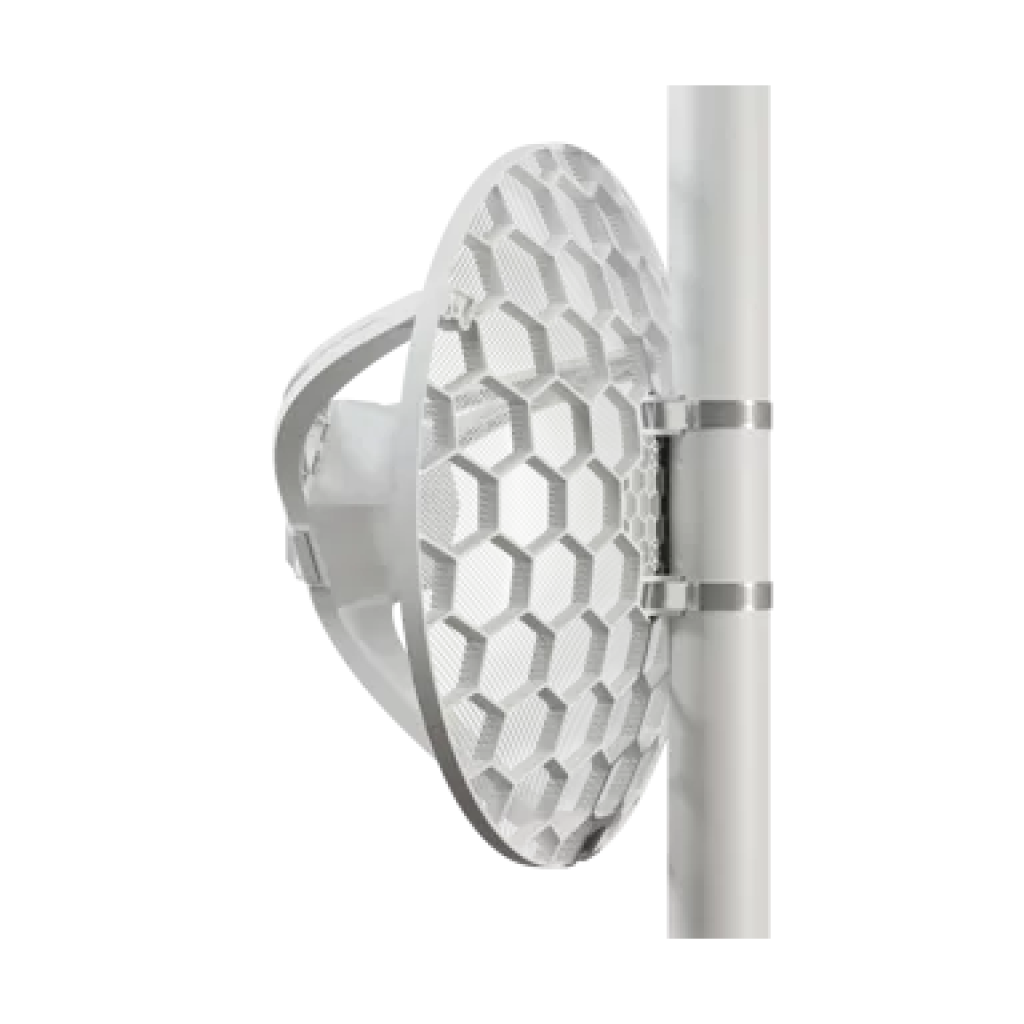

The lightweight grid antenna design reduces wind load while maintaining high gain. And it can be mounted in different ways, including poles and masts. A durable enclosure and operating temperature range from -40°C to +70°C ensure reliable performance in demanding climates. Finally, a massive heat sink keeps the system stable even under continuous load.
| Specifications | |
| Product code | LHGGR&R11e-LTE7 |
| Architecture | ARM 64bit |
| CPU | 88F3720 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| CPU Threads count | 2 |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Max power consumption without attachments | 8 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | 54 |
| Mobile | |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 8 (900 MHz) |
| MIMO DL | 2x2 |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) |
| LTE TDD bands | 38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) |
| TAC | 35312597 |
| Other | |
| Mode button | Yes |
LHGG LTE7 kit
- Brand: Mikrotik
- Product Code: LHGGR&R11e-LTE7
| Qty | 1 | 2 | 4 | 8 | 16 |
|---|---|---|---|---|---|
| Inc. | $279.00 | $256.69 | $245.52 | $237.15 | $231.57 |
| Ex. | $253.64 | $233.35 | $223.20 | $215.59 | $210.52 |
| Availability: | In Stock Now! |
| Further units due: | 2026-06-28 |
What does this info mean?
